  • THE CANTER 6,5 T 4x4. <br />
READY FOR (ALMOST) EVERY TERRAIN.

    THE CANTER 6,5 T 4x4.
    READY FOR (ALMOST) EVERY TERRAIN.

    Overview, technical data, equipment details

logo
REAL ALL-ROUNDER.
For flexible use, no matter which season.
4X4.
Selectable all-wheel drive, more traction
REDUCTION TRANSMISSION.
More torque, when needed

MORE POWER. THE CANTER 6,5 T 4×4.

6C18 4X4/ 6C18D 4X4

The FUSO Canter 6.5 t 4×4 is a flexible and efficient all-rounder that is ideally suited for use in changing conditions and demonstrates its strengths all year round.

The Canter 6.5 t 4×4 has everything it needs for higher traction requirements when driving on more demanding terrain: a selectable all-wheel drive for smooth progress, a selectable reduction transmission for increased traction at the wheel through more torque at lower speeds and a self-locking differential for safe dosage of all-wheel power.

Combined with its powerful engine, high ground clearance – 210 mm beneath the front axle and 185 mm beneath the rear axle – and large slope angles – 35 degrees at the front and 25 degrees at the rear – all these features give the Canter 6.5 t 4×4 tremendous climbing ability.

Given its warp-resistant, 6 mm thick ladder frame made of steel – with a frame width of 750 mm – and two wheelbases – 3,415 mm and 3,865 mm – and a load capacity of up to 3,680 kg, the chassis is the perfect basis for a wide range of body solutions. The choice between comfort single and comfort double cab allows an even more individual configuration and is further proof of its operational flexibility.

The Canter 6.5 t 4×4 is a leader in its segment thanks to its equipment and the combination of variability and payload – even in a direct price-performance comparison.

TECHNICAL DATA.
THE CANTER 6,5 T 4×4 IN NUMBERS.

3S13 3S15
Cabin Standard (1,7 m) Standard (1,7 m)
Cabin Type / Seats Single / 3 Single / 3
Wheelbase (mm) 2.500 2.800 3.400 2.500 2.800
Chassis Payload (kg) 1.565 1.555 1.530 1.565 1.555
Maximum Body Length (mm) 3.500 3.995 4.985 3.500 3.995
Axle Loads (front / rear) 1.950/2.500 1.950/2.500
Transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission
Maximum power/torque 96 Kw (130 PS) / 350 Nm 110 Kw (150 PS) / 400 Nm
Minimum turning circle wall to wall (m) 10,2 11,2 13 10,2 11,2
3C13 3C15 (D)
Cabin Comfort (2,0m) Comfort (2,0m)
Cabin Type / Seats Single / 3 Single / 3 Double / 6
Wheelbase (mm) 2.500 2.800 3.400 3.850 2.500 2.800 3.400 3.850 3.400
Chassis Payload (kg) 1.460 1.455 1.430 1.415 1.460 1.450 1.425 1.410 1.205
Maximum Body Length (mm) 3.500 3.995 4.985 5.725 3.500 3.995 4.985 5.725 3.985
Axle Loads (front / rear) 1.950/2.500 1.950/2.500
Transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission
Maximum power/torque 96 Kw (130 PS) / 350 Nm 110 Kw (150 PS) / 400 Nm
Minimum turning circle wall to wall (m) 10 11 12,6 14 10 11 12,6 14 12,6
6S15
Cabin Standard (1,7 m)
Cabin Type / Seats Single / 3
Wheelbase (mm) 2.500 2.800 3.400
Chassis Payload (kg) 3.785 3.770 3.740
Maximum Body Length (mm) 3.500 3.995 4.985
Axle Loads (front / rear) 2.300/4.360
Transmission 5-speed manual transmission
Maximum power/torque 110 Kw (150 PS) / 400 Nm
Minimum turning circle wall to wall (m) 11,4 12,4 14,6
6C18 (D)
Cabin Comfort (2,0 m)
Cabin Type / Seats Single / 3 Double / 7
Wheelbase (mm) 3.415 3.865 3.415 3.865
Chassis Payload (kg) 3.685 3.665 3.465 3.445
Maximum Body Length (mm) 5.005 5.750 4.005 4.750
Axle Loads (front / rear) 2.800/5.125 2.800/5.070 2.800/5.125 2.800/5.070
Transmission 5-speed manual transmission
Maximum power / torque 129 Kw (175 PS) / 430 Nm
Minimum turning circle wall to wall (m) 14,9 16,5 14,9 16,5
Slope angle (front/rear) 35°/25°
Ground clearance under the axles front/rear (mm) 210/185
7C15 (D) 7C18 (D)
Cabin Comfort (2,0 m) Comfort (2,0 m)
Cabin Type / Seats Single / 3 Double / 7 Single / 3 Double / 7
Wheelbase (mm) 2.800 3.400 3.850 4.300 3.850* 2.800 3.400 3.850 4.300 4.750 3.850 4.750**
Chassis Payload (kg) 4.970 4.940 4.920 4.875 4.705 4.970 4.940 4.920 4.875 4.855 4.705 4.620
Maximum Body Length (mm) 3.995 4.985 5.725 6.470 4.725 3.995 4.985 5.725 6.470 7.210 4.725 6.210
Axle Loads (front / rear) 3.100/5.800 3.100/5.740 3.100/5.680 3.100/5.740 3.100/5.800 3.100/5.740 3.100/5.680 3.100/5.640 3.100/5.740 3.100/5.640
Transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission 5-speed manual transmission, 6-speed DUONIC dual-clutch transmission
Maximum power/torque 110 Kw (150 PS) / 400 Nm 129 kW (175 PS) / 430 Nm
Minimum turning circle wall to wall (m) 11,8 13,8 15,2 16,6 15,2 11,8 13,8 15,2 16,6 18 15,2 18
*only available with manual transmission **only available with DUONIC
9C18
Kabine Comfort (2,0 m)
Kabinentyp/Sitze Einzel / 3
Radstand (mm) 3.400 3.850 4.300 4.750
Fahrgestelltragfähigkeit (kg) 5.985 5.950 5.935 5.895
Maximale Aufbaulänge 4.985 5.725 6.470 7.210
Achslasten (vorne/hinten) 3.100/5.800
Getriebe 6-Gang-Doppelkupplungsgetriebe DUONIC
Maximale Leistung/Drehmoment 129 kW (175 PS) / 430 Nm
Minimaler Wendekreis Wand zu Wand (m) 13,8 15,2 16,6 18

INNER VALUES.
THE CANTER 6,5 T 4×4 IN DETAIL.

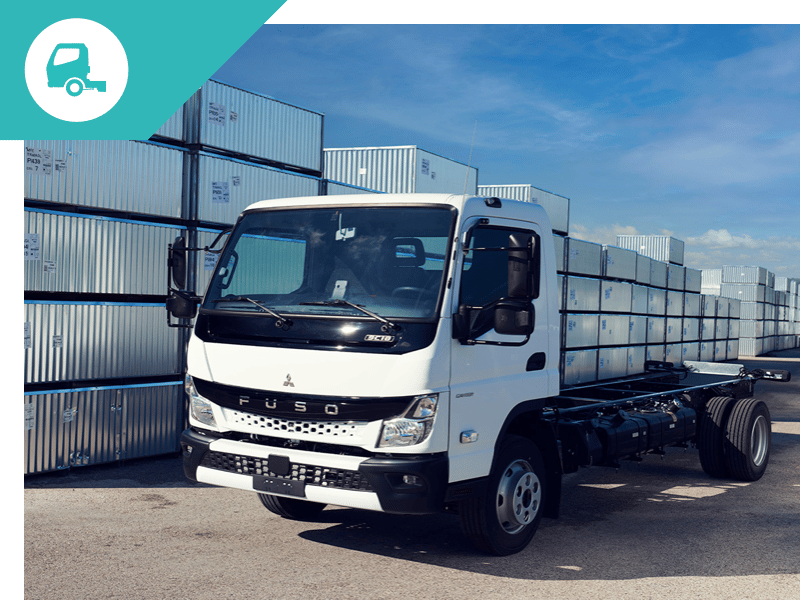

CABS.
WIDE AND DOUBLE.

For the Canter 6.5 t 4×4, FUSO offers a choice of the two comfort cab variants.

  • Both cabs are 1,995 mm wide and combine compact exterior dimensions with a spacious interior. The comfort single cab has three seats and the comfort double cab has seven seats.

ENGINE.
EFFICIENT AND POWERFUL.

The Canter 6.5 t 4×4 features a powerful 3-litre engine with 129 kW (175 hp) output, ideally dimensioned for all-wheel drive applications.

  • Its turbocharger with variable turbine geometry ensures optimum response and consistently high torque even at low engine speeds.
  • It features the latest common-rail technology and a start-stop function as standard.
  • A closed, automatically regenerating diesel particulate filter in combination with selective catalytic reduction (SCR) cleans the exhaust gases.
  • The engine complies with the EURO VI standard (stage E).

TRANSMISSION.
MANUAL AND ALL-WHEEL.

FUSO installs a 5-speed manual transmission with optional selectable all-wheel drive in the Canter 6.5 t 4×4.

  • The selectable all-wheel drive enables intermittent driving in demanding terrain.
  • Power distribution in all-wheel drive mode is 60% to the front axle and 40% to the rear axle.
  • The additional reduction transmission reduces the engine speed on more demanding terrain, if necessary, and thus increases the torque.
  • A self-locking differential rounds off the technology package for more traction and driving stability.

SAFETY.
PROTECT AND SUPPORT.

The Canter 6.5 t 4×4 is equipped with various modern assistance and safety systems.

  • ABS, EBV (electronic brake force distribution) and the driver’s airbag are included as standard.
  • LDWS (lane departure warning system) is available as an option.
  • In addition to the standard LED daytime running lights, there are optional front headlights in LED design.
  • In addition to the optional passenger airbag, the standard seatbelt reminder enhances occupant safety.
  • A reinforced rear underride guard offers even better protection in the case of rear-end collisions.

FACTORY BODIES.
RAPIDLY AVAILABLE AND TESTED.

For the Canter 6.5 t 4×4, FUSO offers the body as a three-way tipper with steel side walls directly from the factory.

  • The offer increases the prompt availability of a complete vehicle.
  • The factory bodies, developed and tested by FUSO, stand for maximum quality as a complete vehicle concept.
  • The 36-month warranty on chassis, drive train and components ex works up to 100,000 km also includes the body.
  • Numerous optional extras, such as a toolbox, are available.

INTERIOR.
COMFORTABLE AND PRACTICAL.

The interior of the Canter 6.5 t 4×4 combines practical functionality with a driver-oriented focus.

  • A continuously adjustable steering wheel for individual adjustment is standard.
  • A particularly comfortable ergonomic driver’s swing seat from Isringhausen is also available.
  • The well thought-out storage concept brings clarity and order and includes clever solutions such as the storage shelf on the back of the folding central seat.
  • Power windows add to the ease of use.

MORE.
IN SERIES AND OPTIONAL.

The equipment list of the Canter 6.5 t 4×4 convinces with many other useful points.

  • The standard Autolight function controls the driving lights depending on the lighting conditions.
  • Particularly robust and powerful drum brakes are fitted as standard ex works.
  • The exhaust brake additionally protects the brake pads and relieves the brake system on long downhill runs.
  • The chassis is available in two different wheelbases.
  • The optional 24 V interface and factory-fitted power take-offs round off the great body-friendliness.
  • An automatic air-conditioning system or a manual air-conditioning system are available as options.
  • The latter is also available for the double cab with separately controllable additional ventilation for the rear seat.
